CCIE Routing and Switching LAB Dumps

( 18 People are currently looking at this product )

Exam Code: CFG: LAB1、LAB1+、LAB2、LAB2+、LAB3
TS: TS1(5 sets)、TS2(3 sets)
DIAG:DIAG 1~DIAG 8(8 sets)

Certification Provider: Cisco

Certification Exam Name:CCIE Routing and Switching Lab

Update Date: Aug 17,2019

Free Cisco Written Dumps
For Top 50 Purchases
Latest Dumps
Numbers of Question & Answers

Q1:Layer(2 point)

Q2:BGP(2 point)

Q3:BGP2(4 point)

Q4:BGP2(2 point)

Q5:DMVPN(2 point)

Q6:IPv6 (2 point)

Q7:MPLS VPN(4 point)

Q8:Security(2 point)

Q9:DMVPN(2 point)

Q10:NAT(2 point)

Demo1:

ProblemServer 1 can not get ip address.

Materials:

SW3#show ip dhcp snooping

Switch DHCP snooping is enabled

DHCP snooping is configured on following VLANs:

none

DHCP snooping is operational on following VLANs:

none

Smartlog is configured on following VLANs:

none

Smartlog is operational on following VLANs:

none

DHCP snooping is configured on the following L3 Interfaces:

Insertion of option 82 is enabled

   circuit-id default format: vlan-mod-port

   remote-id: 0018.b9da.5300 (MAC)

Option 82 on untrusted port is not allowed

Verification of hwaddr field is enabled

Verification of giaddr field is enabled

DHCP snooping trust/rate is configured on the following Interfaces:





Interface          Trusted     Allow option     Rate limit (pps)

 --------------------   -------         ------------     ----------------

Q1Which material is most helpful

Q2:which packets can help you find the cause


Demo2:

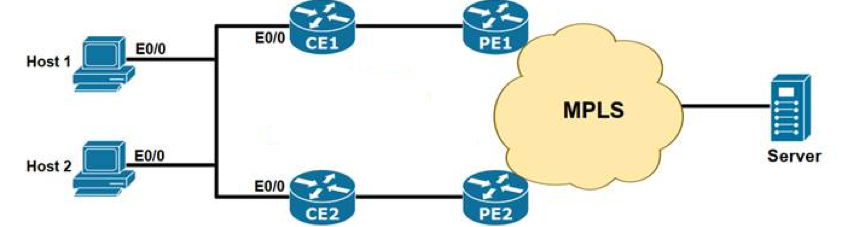

Customer just setup a IPv6 Network, with HSRPv6 on R1 & R2. After setting up, all hosts lose connection.

What would you recommend to your L1 Engineer as a Quick Fix?

CE1 key configuration

standby 1 priority 200

standby 1 preempt

ipv6 nd router-preference low

CE2 key configuration

standby 1 preempt

ipv6 nd router-preference high





I think it is a rouge device because I don't see any problems with the HSRPv6 config. PCs are configured with "ipv6 enable", "ipv6 autoconfig"

The R1 have a "ipv6 nd-preference high" and R2 have "low" if I'm not wrong.



How fast fix the problem?



¡ Shutdown the link between CE2 and PE2.

¡ Shutdown the link between CE1 and PE1.

¡ Configure CE1 with highest HSRPv6 Priority.

¡ Configure CE2 with highest HSRPv6 pirority.

¡ Configure CE2 with low HSRPv6 priority.

¡ Shutdown CE1 interface e0/0.

¡ Shutdown PE2 interface e0/0.

¡ Disable fast-switching on CE's LAN.

¡ Enable fast-switching on CE's LAN.

¡ Change HSRPv1 to HSRPv2 version


SECTION 1 LAYER 2 TECHNOLOGIES


Section 1.1: LAN Access

The following requirements were pre-configured

VTP is turned off in all switches

All required VLAN, including access-ports configuration in all relevant switches are provisioned.

All required SVI interface in all relevant switches (including IP address and subnets mask) are provisioned.

Configure the network in all sites as per the following requirements:

Access-port must immediately transition to the forwarding state upon link up, as long as they do not receive a BPDU. Use the minimal number of commands per switch to enable this feature.

If an access-port receive a BPDU, it must automatically shutdown. Use the minimal commands per switch to enable this feature.



Ports that were shutdown must attempt to automatically recover after 10 minutes.

None of the switches may generate a TC.


section 1.2: LAN distribution

configure the headquarters’ network as well as the large and medium office networks as per the following requirements:

all trunks must use dot1q encapsulation

negotiation of trunking protocol must be disabled in all switches

distribution switches (SW300, SW301, SW400, SW401, SW500, SW501) must initiate etherchannel negotiation using LACP

configure layer 2 etherechannels number as shown in the diagram 1: main topology and diagram 5: layer 2 connections’ (that is use only Po1 and/or Po2)

ensure that all ports included in etherchannels are effectively in use and bundled in the expected channel

access switches must see similar output as shown below:



section 1.3: LAN resiliency: spanning-tree

configure the headquarters‘network as per the following requirements:

SW300 must be the spanning-tree root bridge and must maintain a single spanning-tree instance for the following VLANs: 2000, 2002, 2004, 2006, 2008 (use instance number 2)

SW301 must be the spanning-tree root bridge and must maintain a single spanning-tree instance for the following VLANs: 2001, 2003, 2005, 2007, 2009 (use instance number 1)



all other VLANs, except 3001, must share the default spanning-tree instance

ensure that interface E0/2 of SW 300 and SW 301 is a dot1q trunk and that it switches frames for VLAN 3001 only

SW300, SW301, and SW 310 must not have any blocked ports for any access VLAN (2000-2009)

SW310 must have the least chance of being elected the root bridge for any VLAN

none of the three switches may run more than four instance of spanning-tree at any point in time

configure all access switches in both datacenter networks (SW110, SW111, SW210, SW211) as per the following requirements:

use 32-bit based values for the default port path cost

all four switches must use the default value for their interface cost




section 1.4: WAN switching technologies

configure the home router R70 as per following requirements:

the Ethernet WAN link must rely on a layer 2 protocol that supports authentication and layer 3 protocol negotiation

the service provider expects that R70 completes a three-way handshake by providing the expected response of a challenge requested

R70 must use the hostname R70and password CCIE (without quotes)

R70 must receive an IP address from R8 and must install a default route pointing to 201.99.8.8

ensure that R70 can successfully ping 8.8.8.8, which is located in the ISP#2 cloud

you are not allowed to configure any static route in R70 in order to achieve the previous requirements

use the pre-configured Dialer 1 interface as appropriate

section 2 layer 3 technologies


section 2.1: OSPF in HQ

configure the headquarters network (BGP AS#65003) as per the following requirements:

both gateway routers of the headquarters network must always advertise a default route into the ospf domain

all four devices produce the exact same output as shown below. everything must match, except the dead time” counters and line order


section 2.2: OSPF in DC#1

in order to speed up OSPF convergence in the datacenter#1 network, limit the number of IP prefixes that are carried in OSPF LSAs that OSPF is preconfigured in all required devices in datacenter#1

configure the datacenter#1 network as per the following requirements:

all OSPF devices must exclude the IP prefixes of connected networks when advertising their type 1 router LSA, except for prefixes associated with loopbacks or passive interfaces

host loopbacks are the only OSPF intra-area prefixes that may appear in any DC devices ‘routing table

your solution must still apply if any new interface was added to the OSPF domain

don not use any prefix-list or another explicit filter anywhere

do not configure any interface as unnumbered

do not remove any pre-configuration


section 2.3: B2B connection with partner#1

R100 is located in the partner#1 network and is connected to R42. it supports OSPF only. configure the large office network as per the following requirements:



R42 must run a separate OSPF process with R100

as mentioned in item 2.6, the site gateways R40 and R41 area not allowed to redistribute OSPF into BGP and vice versa

R42 is allowed to redistribute OSPF into BGP and vice versa

At the end of the exam:

The server 2 (that is located in the Datacenter#2) must be able to ping the IP address 100.100.100.100/24 (that is located in the partner#1 network)

  R100, the partner router, must receive the external prefixes as shown below and no other prefixes:

Section 3 VPN Technology


Section 3.1: MPLS VPN

Section 3.2: DMVPN

Section 3.3: Internet Access

Section 3.4 LAN to LAN IPsec

Section 4 Infrastructure Security


Section 4.1: Device Security

Section 4.2: Network Security

Section 5 Infrastructure Security


Section 5.1: System Management

Section 5.2: Quality of Service

Section 5.3: Network Services

Section 5.4: Network Services

100% Pass Exam

We guarantee that you can pass the exam successfully. If the test encounters a change, it will lead to disqualification. You can continue the service time free of charge by giving us the information that failed the test on the day.


100% Accurate Questions

All the information is up-to-date. We will update and remind you all the latest news.


Question bank verified by experts

The best teacher with the best study materials will definitely help you pass the certification exam.


Pass the least time

According to the survey, have 96% of students pass the exam during 5 days successfully.


Simulate the real test environment

Students can experience a real Cisco exam in a simulated practice environment. Giving students a better exam experience.


24-hour service support

We can provide you with the best service support through Whatsapp & Skype


Customer information is strictly protected

In the security and privacy of our customers, we guarantee that we will never disclose the student’s personal data to any third party.

Firozepa 2019-08-10

Very happy, I passed the ccie rs lab exam today and it is very stable! It took me only 5 hours to complete all the configuration. I will write a feedback to record the problems I encountered in today's exam.


Sara 2019-08-04

I got LAB3/TS1/DIAG2+ in the LAB exam and the problems encountered in the examination room are the same as those I usually practice! This is how easy I got my CCIE number!


Lisa 2019-07-28

thanks god and thank you all. 100% valid. you can trust on PASSHOT.



Abbie 2019-07-27

I passed my exam this morning. I prepared with this dump two weeks ago. This dump is very valid. All the questions were in my exam. I still got 2 new questions but luckily they are easy for me. Thanks for PASSHOT's help. I will recommend you to everyone I know.



Parker 2019-07-26

A valid dump. It helped me pass the exam in short time. Thanks a million.



Artur 2019-07-25

The Dump is valid 100%


Luka 2019-07-25

My good friend introduced this passhot' s material to me. It really useful and convenient. I just prepared the exam by using this material and achieved high score than others. So I'm very happy. Thanks my friend and this material.



Temel 2019-07-24

valid 100% thanks for passhot helping me pass the exam.


Mikhail 2019-07-24

Dumps are valid. I passed my CCIE RS LAB exam this morning. Few questions are different with the Qs from the dump but never mind. I passed. Thank you. Good luck to you all.



Zack 2019-07-24

I pass today . In my opinion, this dump is enough to pass exam. Good luck to you.



CCIE Routing and Switching LAB

Exam Description

The CCIE Lab exam is an eight-hour, hands-on exam which requires you to configure and troubleshoot a series of complex networks to given specifications. Knowledge of troubleshooting is an important skill and candidates are expected to diagnose and solve issues as part of the CCIE lab exam.


DIAG: 30 minutes

the act or process of identifying the root cause


TS: The Troubleshooting module is 2 hours. If desired, candidates can extent the Troubleshooting module's time by borrowing up to 30 min from the Configuration module. Note, the total Configuration module time will be reduced by the extra time spend in the Troubleshooting module (if any, up to 30 min). If candidates finish the Troubleshooting module early, the unused Troubleshooting module’s time will be added to the Configuration module’s time, ensuring a total lab exam time of 8 hours.


CFG:

The Configuration module provides a setup very close to an actual production network having various security components providing various layers of security at different points in the network. Though the major part of the module is based on virtual instances of the Cisco security appliances, the candidate may be asked to work with physical devices as well. At the beginning of the module, the candidate has full visibility of the entire module. A candidate can choose to work in the sequence in which the items are presented or can resolve items in whatever order seems preferable and logical.


NOTE: The candidate must complete the modules in sequence and is not allowed to go back and forth between modules.


1. Layer 2 Technologies 20%

2. Layer 3 Technologies 40%

3. VPN Technologies 20%

4.Infrastructure Security 5%

5.Infrastructure Services 15%
